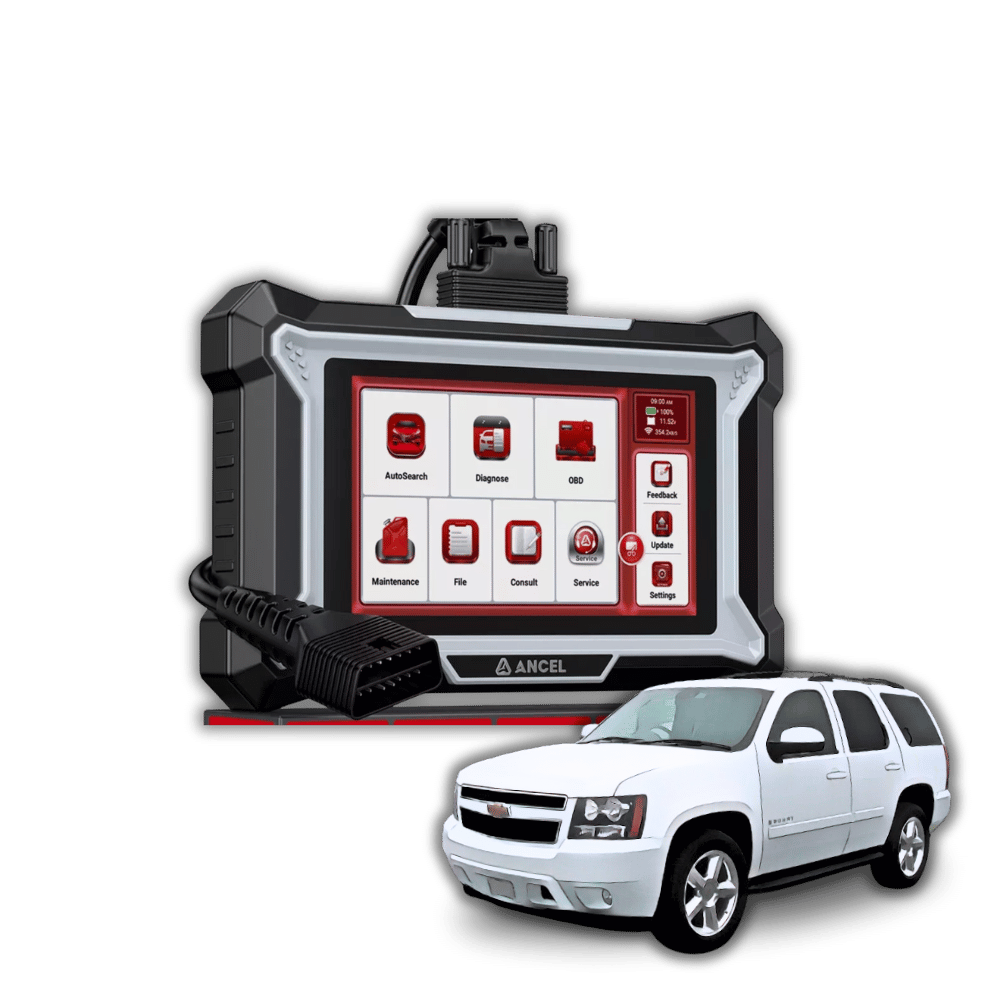

DS10 Auto Diagnostic Tablet Advantages:
4 System Diagnostic: As a comprehensive OBD2 scanner, DS100 can access and diagnose 4 car systems（ABS/SRS/Engine/Transmission ）, enabling you to read and clear codes, monitor live data streams, and graph up to 10 pids graphing. It also supports data recording and review, includes special functions to evaluate vehicle module status. Delivering dealership-quality diagnostics, it offers detailed and accurate reports across 4 automotive systems
Supports 150+ Vehicle Models for Diagnostic:Since the implementation of the OBDII standard in 1996, any vehicle equipped with an OBDII system can perform this function.
Supports Full OBD Diagnostic Functions: Including Reading Codes, Erasing Codes & Reset, Data Stream, I/M Readiness Status, Read Live Data Stream, View Freeze Frame Data, Oxygen sensor monitoring, On-Board Monitor Test, Read Vehicle Information(VIN), Component Test
7 Maintenance Functions: Which are ABS Bleeding, Battery Matching, Brake Reset, Electric Throttle Relearn, Gear Learn, Oil Maintenance Reset, Steering Angle Reset
Support for 7+ Languages: The default language of the device is English, changeable language. Support for English, Portuguese, Spanish, Japanese, Italian, German, French
Supports one-click Wi-Fi Connection: Wi-Fi connects the device to the internet, allowing for enhanced diagnostic services and access to the latest information. This device supports the 2.4GHz band. If you choose to skip the Wi-Fi connection, the default English version of the diagnostic software can still be used. However, it is recommended to connect to Wi-Fi during initial setup to easily download the latest version of the diagnostic softwar
AutoSearch Function: This function obtains the vehicle's VIN through the OBDII interface, analyzes the VIN, and automatically identifies the vehicle model to enhance diagnostic accuracy. It effectively prevents inaccurate diagnostic data caused by selecting the wrong vehicle model. To use this function, a Wi-Fi connection is required
Support one-click Feedback: This function allows you to provide feedback when encountering diagnostic errors with certain vehicle models.
One-click Upgrade Function: This function is used to upgrade the diagnostic software
One-click Screenshot Function: Swipe down from the top of the screen to open a floating window, providing quick access to settings like brightness adjustment and the screenshot feature
Full OBD Diagnostic Functions
1.Reading Codes: Read DTCs(Diagnostic trouble codes)
2.Erasing Codes & Reset: Clear DTCs
3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7.Oxygen sensor monitoring
8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
9.Read Vehicle Information(VIN)
10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
Packaging:
1x ANCEL DS100 Diagnostic
1x USB Data Cable
1x 16PIN Main Cable
1x Cloth bag
1x Box
